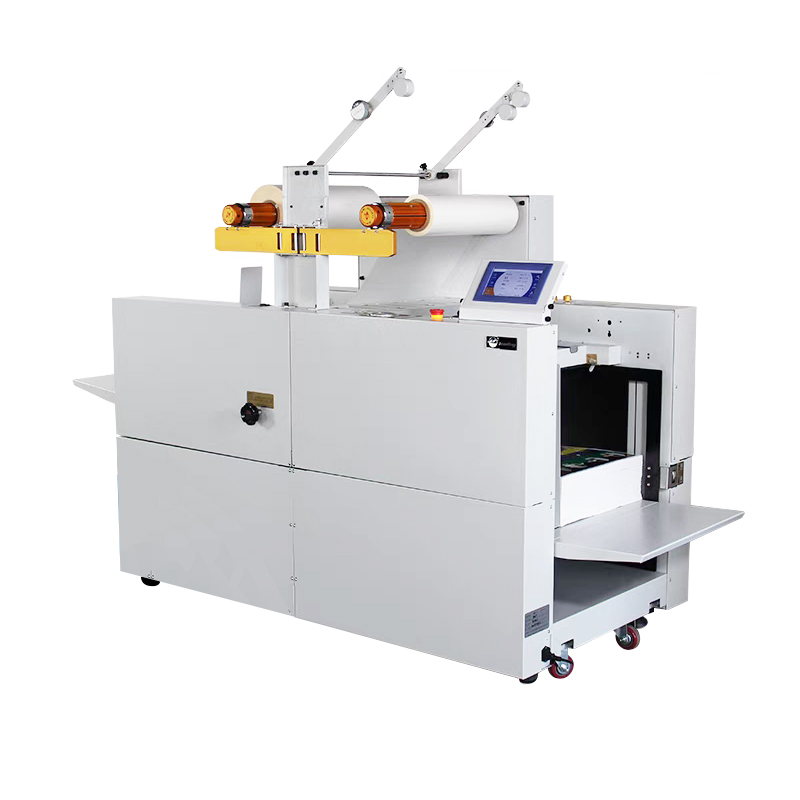

540T Automatic Laminating Machine Hydraulic Paper Laminator

SPECIFICATION

• Max. laminating width：540mm

• Laminating thickness：125~400gsm

• Feeding mode：Air suction automatic

• Steel Roller：176mm

• Heating time：5-10min


• Feeding Tray Capacity：450mm

• Film Core Diameter：3 inch


• Laminating speed：5~10m/min

• Laminating Temperature：0~160℃

• Edge trimming function：support

• Edge perforating function：support

• Anti-curl function：support

• Disconnect after laminating：support

• Display：7" touch screen

• Machine dimension：132*90*145cm

• Voltage/Power：220V(110V)±10%，50HZ(60HZ),1500W

• Packing size：214*99*153cm

• Gross weight：470kg
