DK-3 Automatic Paper Drill With Movable Plate

DK-3 with movable 3 drilling heads and sliding working table which allows for a variety of hole pitches.The programming rod ensures precise hole positioning.Max drilling capacity up to 50mm,ideal for making 9-hole/6-hole/4-hole/3-hole etc.
Availability:
Quantity:
Inquire Add to Basket

  • DK-3

  • WENYUAN

  • 8472902100

SPECIFICATION

  • Drill head(spindle) quantity：3 Standard(Can be removed)

  • Max feeding width:420mm

  • Max drill depth：50mm

  • Hole diameter：3.0-8.0mm

  • Back gauge margin range：6-36mm

  • Drill mode：Automatic

  • Structure：Movable drill heads+movable plate

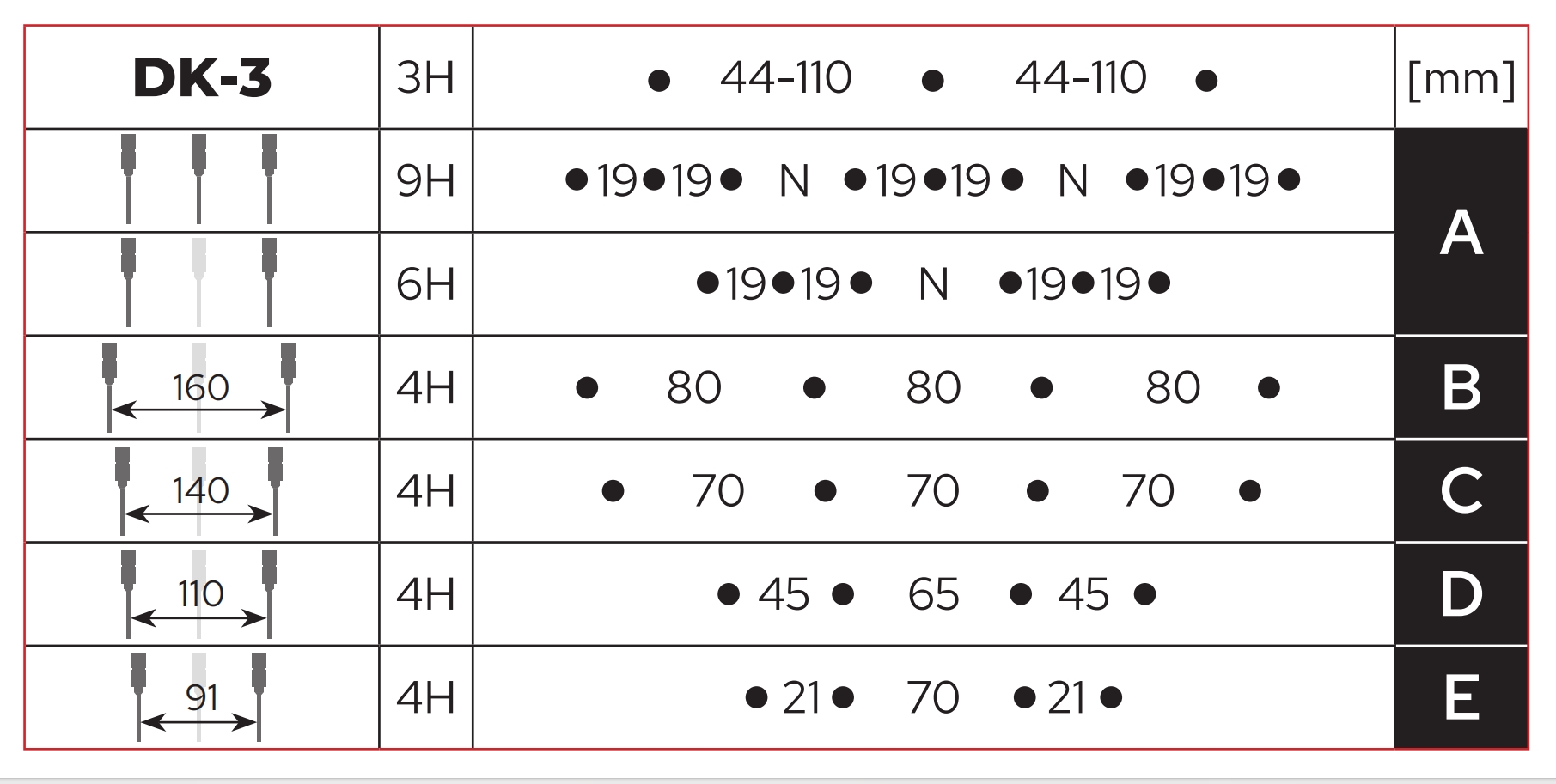

  • Hole(Spindle) distance：5 modes by pitch bar

微信截图_20240301163524

  • Display：4.3" touch screen

  • Machine dimension：72*70*127cm

  • Voltage：220V(110V)±10%，50HZ(60HZ)

  • Power：1200W

  • Machine weight：180kg

PACKING INFO

  • 1PC/WOODEN CASE，G.W.：206kg

  • Packing Size：93*80*156cm

直柄示意图

  • D1(Hole Diameter)：3.0/3.5/4.0/5.0/6.0/7.0/8.0mm

  • D2(Shank Diameter)：11mm

  • L1(Total Length)：78mm

  • L2(Drill Depth)：30mm(D1=3.0 or 3.5mm)

                                          40mm(D1=4.0mm)

                                          50mm(D1≥5.0mm)

DRILLING TIPS

  • Keep drill bits and spindles clean,clean drill bits after each usage and apply a light oil to the inside & outside to avoid rust.

  • Set the drill bits correctly.Make sure that the drill shank is at the top end and fixed.

  • Change the position of the pad frequently,replace the drill bits and pads according to workload requirement.

  • Store the drilling machine and drill bits in a dry and ventilated place.

  • Remember to empty the waste-paper box.
